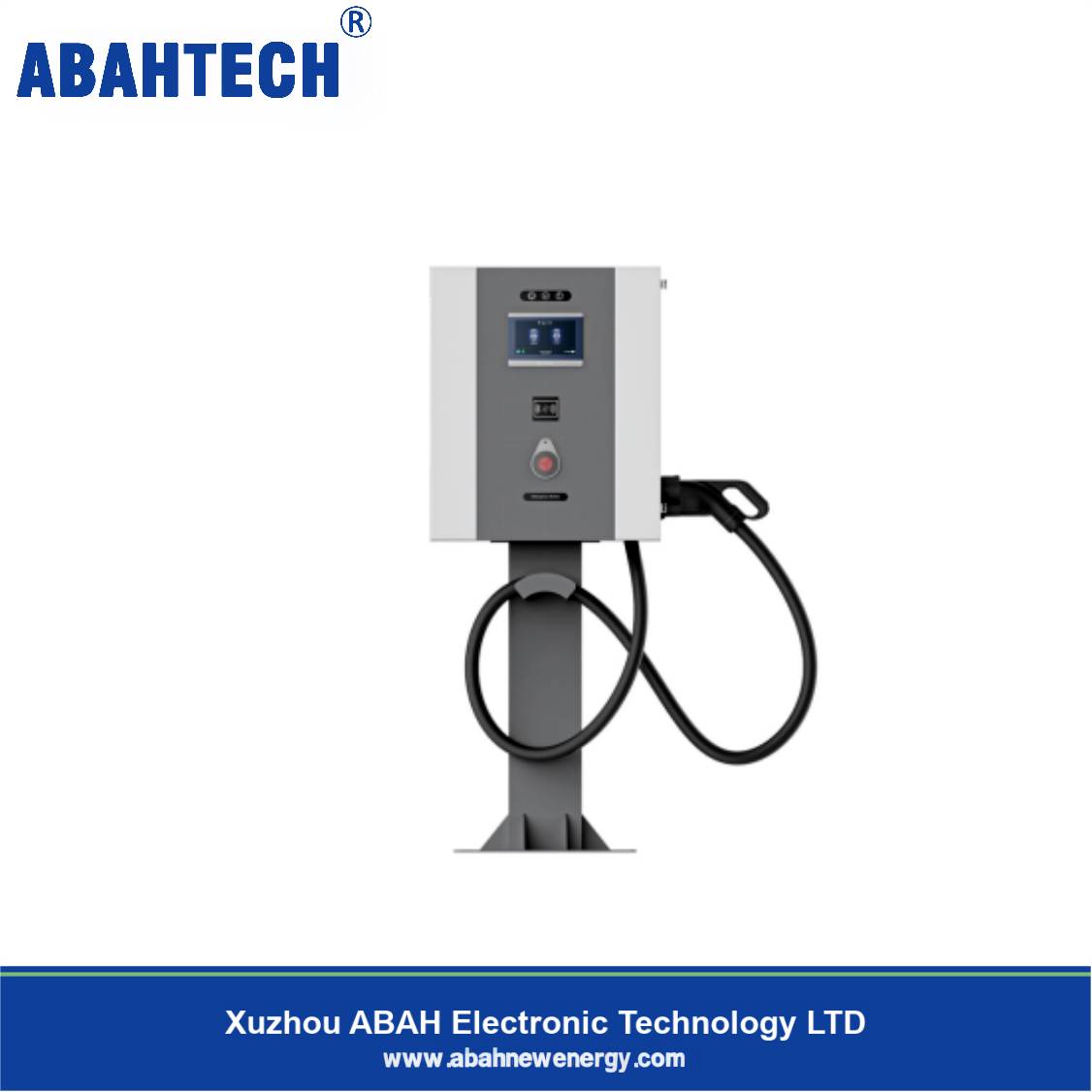

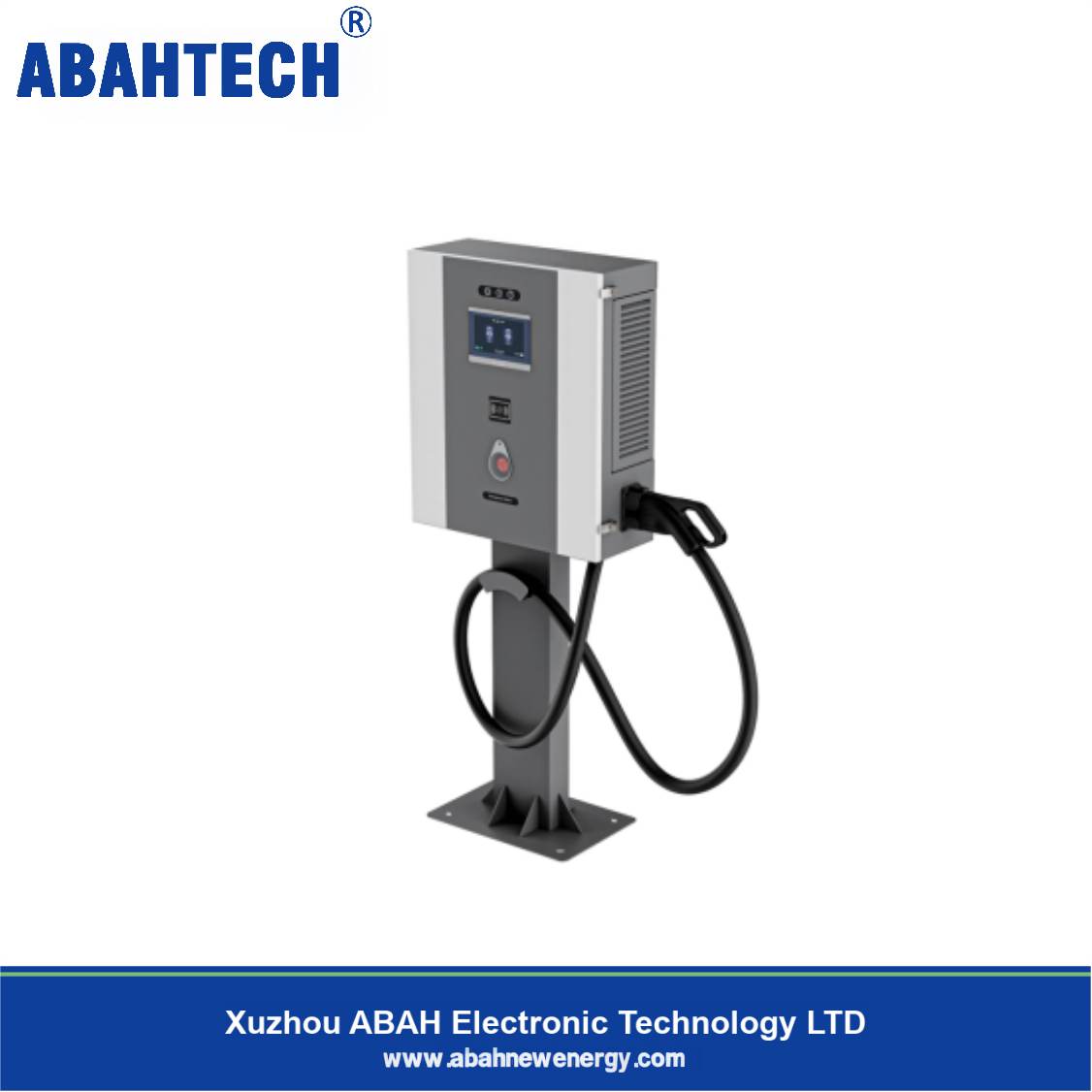

20,30,40kW Series DC EV Charger WY

This charger adopts a simple column design and occupies a very small area, which is very suitable for low-power charging scenarios with site restrictions and power distribution restrictions.

Description
Inquiry

Category	Specifications	Data parameters
Appearance structure	Dimensions(l x d x h)	Pllar630mm x 260mm x1600mm wall 630mm x 260mm × 750mm
	Weight	100kg
	Length of charging cable	5m
	Connectors	Ccs1 \|\| ccs2 \|\| chademo \|\| gbt single gun
Electrical indicators	Input voltage	400vac / 480vac (3p+n+pe)
	Input frequency	50/60hz
	Output voltage	200 - 1000vdc
	Output current	Ccs1- 100a \|\| ccs2 - 100a \|\| chademo - 100a \|\| gbt- 100a
	Rated power	20,30,40kw series dc ev charger
	Effciency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	Ocpp 1.6j
Functional design	Display	7" Lcd with touch screen
	Rfid system	Iso/iec 14443a/b
	Access control	Rfid: Iso/iec 14443a/b \|\| credit card reader (optional)
	Communication	Ethernet - standard \|\| 3g/4g modem (0ptional)
	Power electronics cooling	Air cooled
Work environment	Operating temperature	-30°c to 55°c
	Working\|\|storage humidity	≤ 95% rh \|\| ≤ 99% rh (non-condensing)
	Altitude	<2000m
	Ingress protection	Ip54 \|\| ik10
Safety design	Safety standard	Gb/t,ccs2,ccs1,chademo,nacs
	Safety protection	Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency stop	Emergency stop button disables output power
