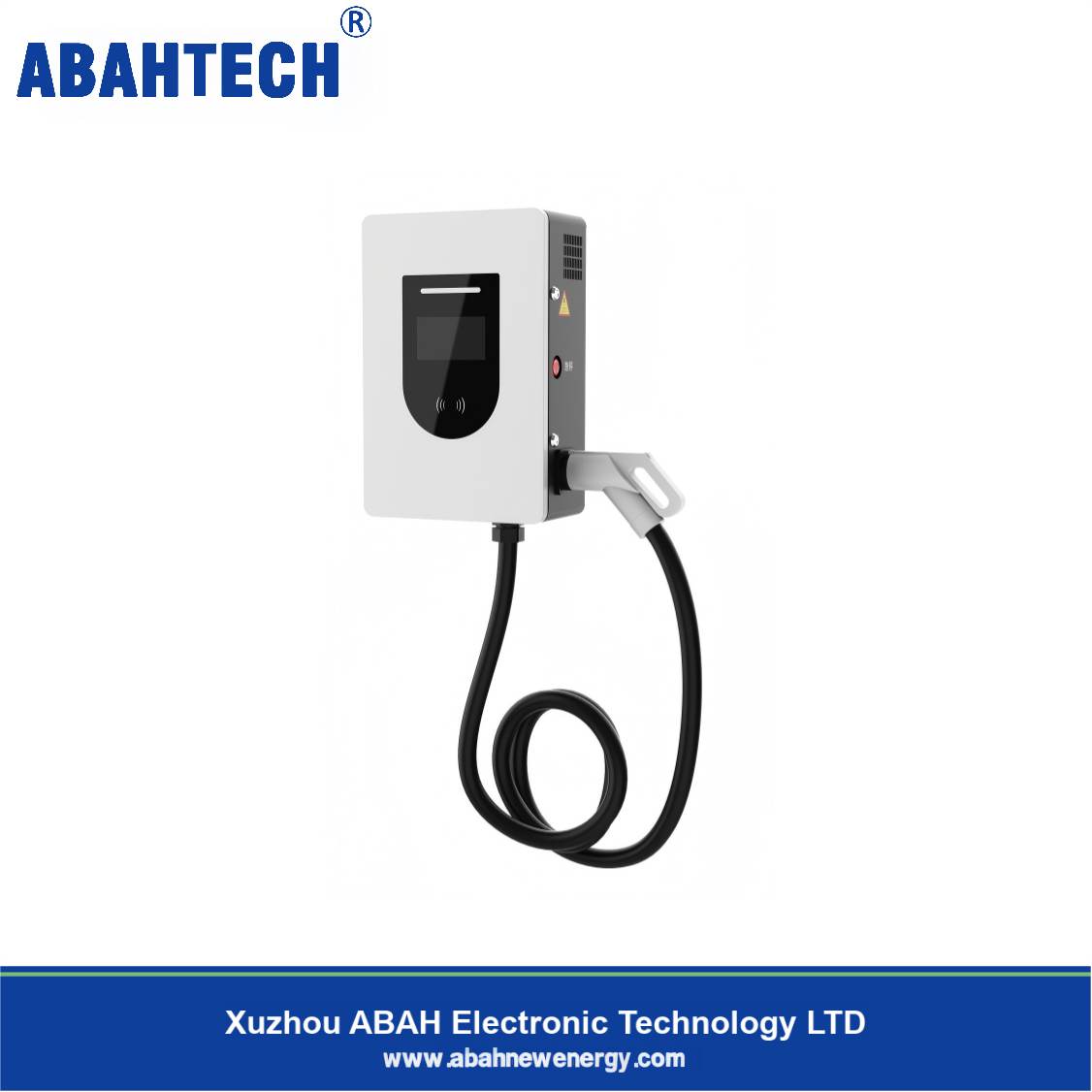

Standard DC Charging Pile Series: Wall Mounted Single Gun

Portable on-board charger, can be directlycharged by connecting to a household 16Asocket.
The power of the device in standby mode isas low as 3W, which is energy-saving and lowconsumption.
Four color indicator lights, real-time controlof charging status

Description
Inquiry

Parameter		Details
Model		EDCB020A	EDCB030A	EDCB040A
Input information	power supply	3P+N+PE
	voltage range	400VAC±20%
	frequency	50/60HZ
Output information	output voltage	200-1000V DC
	maximum current	66A	100A	133A
	rated power	20KW	30KW	40KW
user interface	charging connector	CCS 2 CABLE
	LED indicator light	Green/Yellow/Red
	liquid crystal display	7-inch color touch screen
	RFID reader	MIFARE ISO/IEC 14443 A
	startup mode	Plug and play/RFID card/application
	Emergency stop	yes
	Interface language	English/Chinese
	auriliary power suapply	12VDC
communication	WIFI	optional
	Ethernet	yes
	3G/4G	yes
	OCPP	OCPP 1.6 Json (OCPP 2.0 optional)
Electrical parameters	efficiency	≥95%
	power factor	≥0.99 at 50% to 100% load
	THD	≤5% at 50% to 100% load
	Ripple coefficient	≤±0.5%
runtime environment	RCD	CLASS A
	Entrance protection	IP54
	Impact protection	IK08
	Certification	CE
	Certificate Compliance	EN/IEC 61851-1:2017,EN/IEC 61851-23:2014
	special protection	Overcurrent protection,residual current protection,short circuit protection,grounding protection,surge protection,overvoltage/undervoltage protection, over frequency/under freqyency protection, over temperature/under temperature protection
	guarantee	2 years
	install	Floor bracket
	cooling method	fan cooling
	noise	≤60DB
	Operating Temperature	-30℃~+55℃
	Operating Humidity	5%~95%
	Working altitude	<2000M
	limensions & Weight	450248700MM(LWH)(30KG)	450248700MM(LWH)(30KG)	450248700MM(LWH)(30KG)
