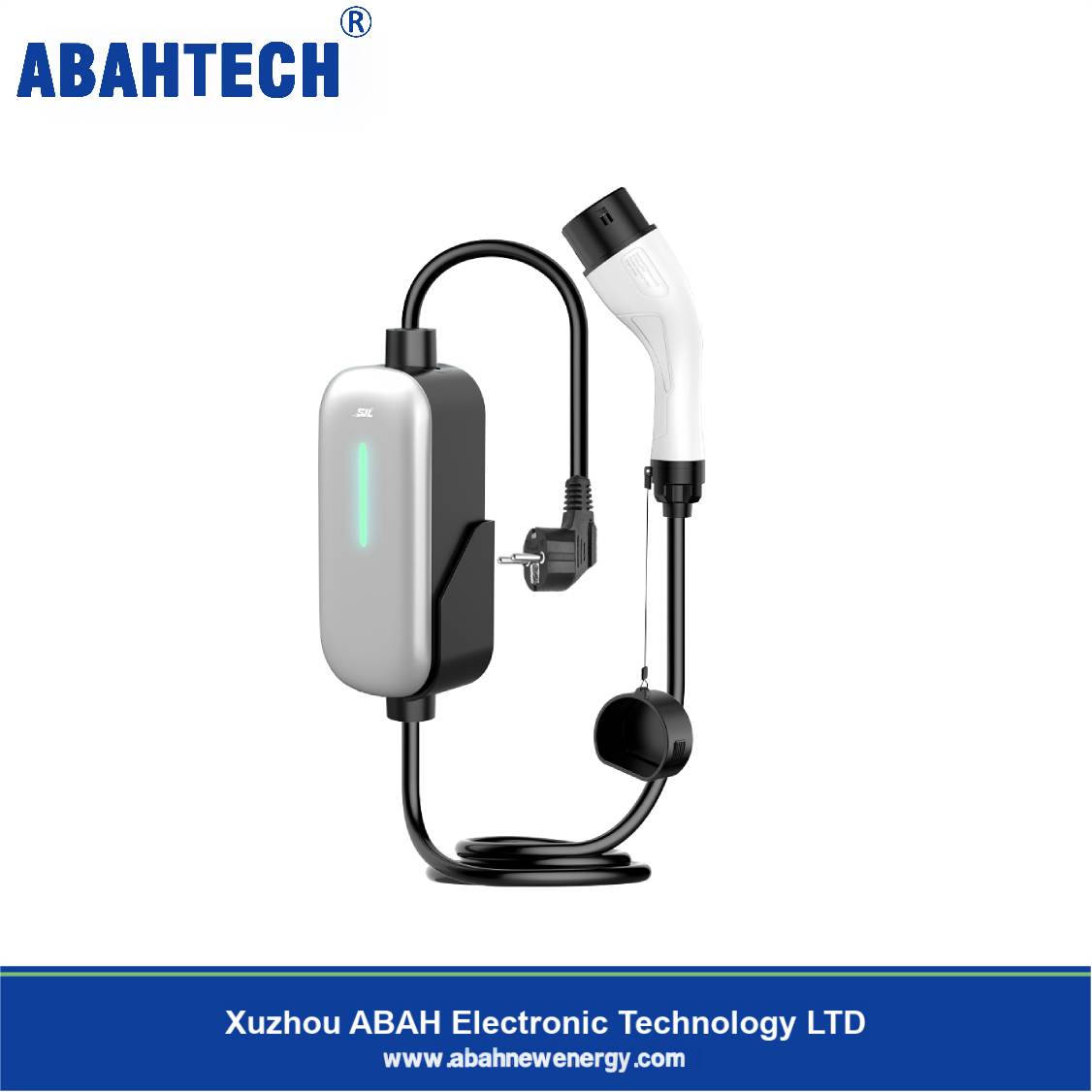

Standard Communication on board Charging Series:3.5KW indicator lamp model DC

Portable on-board charger, can be directlycharged by connecting to a household 16Asocket.
The power of the device in standby mode isas low as 3W, which is energy-saving and lowconsumption.
Four color indicator lights, real-time controlof charging status

Description
Inquiry

Parameter		Details
Model		DL-US001/DL-US002	DL-US001-1/DL-US002-2	DL-US001-2/DL-US002-2
Appearance Structure	Plug model	5-15P	14-50P	6-20P
	Product type	Plug-and-Charger+Pre-scheduled Timed Charging+Current Regulation(Optional Upgrade:Bluetooth APP,WiFi Bluetooth APP)
	Shell material	Flame Retardant ABS+PC 9330
	Equipment size	Gun head 2206255MM/control box 254.197.669.4MM[HWD]
	Installation method	Floor standing/wall mounted
	Install components	Wall mounted back buckle,screw accessories
	Wiring method	Up and down
	Cable specifications	314AWG+118AWG		310AWG+118AWG
	Cable length	5m[supports customized wire length]
Electrical specifications	Input voltage	AC120V	AC240V
	Input frequency	50HZ
	Maximun power	1.92KW	3.84KW	7.6KW
	Output voltage	AC120V	AC240V
	Output current	16A		32A
	Standby power	3W
Environmental indicators	Applicable scenarios	Indoor/Outdoor
	Working humidity	5%~95% non condensing
	Working temperature	-30℃~+50℃
	Working altitude	＜2000m
	Protection level	Gun head IP65/control box IP65
	Cooling method	natural cooling
	Safety standards	5AEJ1772
	Flame retardant grade	UL94 V0
Fuction	Interface	LED indicator light/digital screen display/wifi Bluetooth app
	Communication interface	WiFi Bluetooth app
Specifications	Box Specifications wegith	LWH:410410120MM(2.8kg)	LWH:410410120MM(2.8kg)	LWH:410410120MM(3.8kg)
Safety		Undervoltage protection, overvoltage protection, overload protection, overcurent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectio
