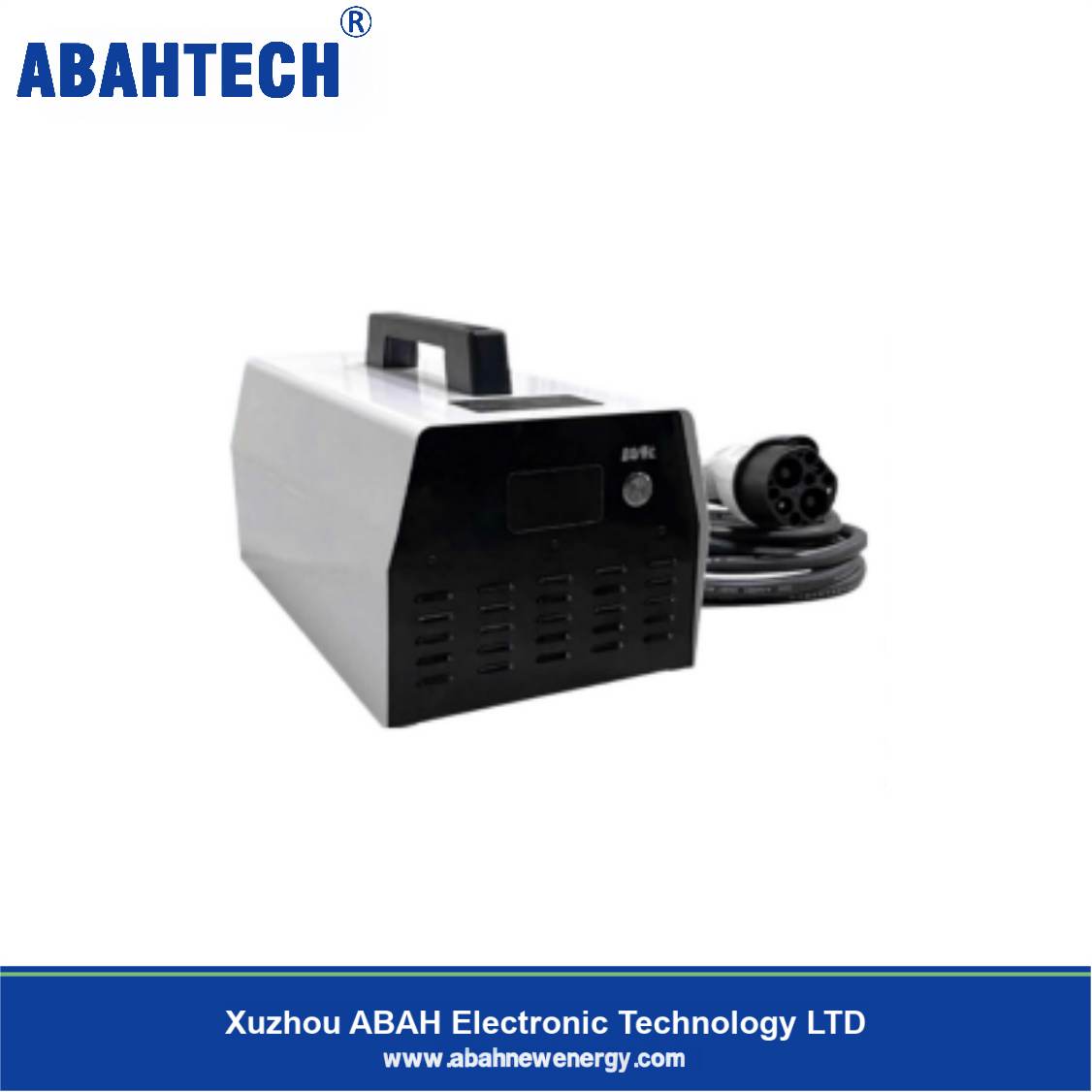

National standard DC charging pile Portable WY

7KW DC Charging Station

Description
Inquiry

Perfect safety protection features with input side overvoltage and undervoltage protection,output side overvoltage,Overcurrent protection,insulation monitoring protection, over-temperature, short circuit, leakage protection, lightning protection, battery reverse connection protection, etc.

It has three status indicators for power, charging and fault, and is fully compatible with thenewversionof thecountry

It is equipped with emergency shutdown, connection confirmation detection,

charging door opening detection, charging Electric gun lock, charging gun temperature detection and other features ensure full charging safety.

parameter		details
model		7KW DC charging station
Basic electrical performance	Ac Input voltage	85~265VAC,220VAC(TYPE)
	Ac input frequency	47-63HZ,50HZ(TYPE)
	Output power	0-6600W
	Output voltage	200-580VDC
	Constant power range	330-580VDC.
	Output current	0-20A
	Power factor	0.95(full load)
	Peak efficiency	95%
	Reference Standards	GB/T20234.1-2015,GB/T20234.3-2015GB/T27930-2015GB/T184871-2015NB/T3300-2018
Features	Access method	Single-phase 32A dedicated distribution
	Quick control	One-click start/stop
	Protection design	Overvoltage protection,undervoltage protection,overload protection,short circuit protection,ground protection,
	Communication interface	C A N communication
	Noise	Less than 60DB
	Heat dissipation methods	Forced air cooling
Operating environment	IP ratings	IP32 protection class
	Operating temperature	-30-50 ° C Smart over-temperature protection
	Relative humidity	5% ~ 95%
	Altitude	2000M
	Atmospheric pressure	70~106KPA
	Applicable environments	Indoors or sheltered from the rain
Mechanical properties	Fuelage dimensions	425X225X185MM
	Package size	520X420×270MM
	Device weight	12.2 KG
	Gross weight of outer packaging	13.4 KG
	Gun wire length	3 meters
	Input line length	2 meters
