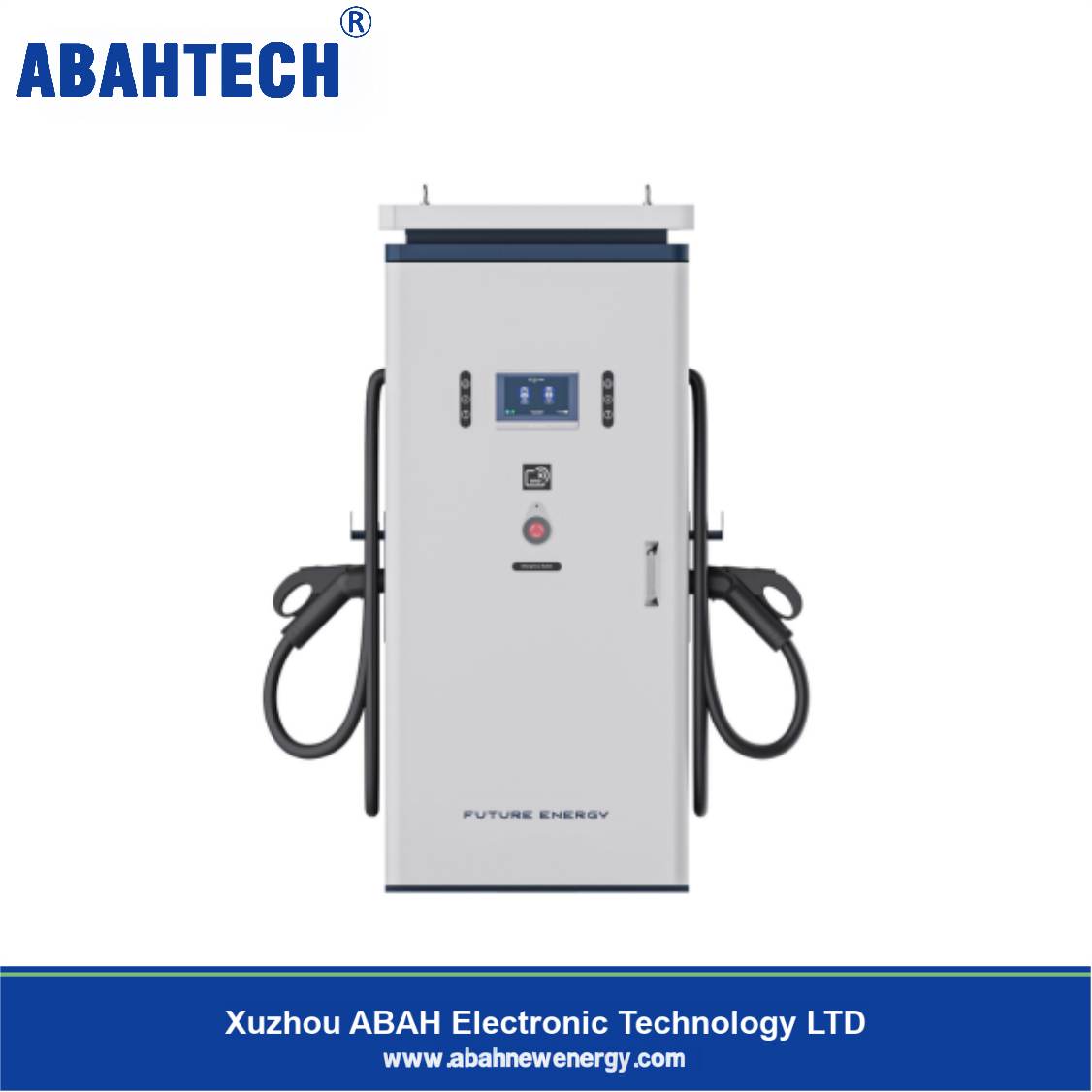

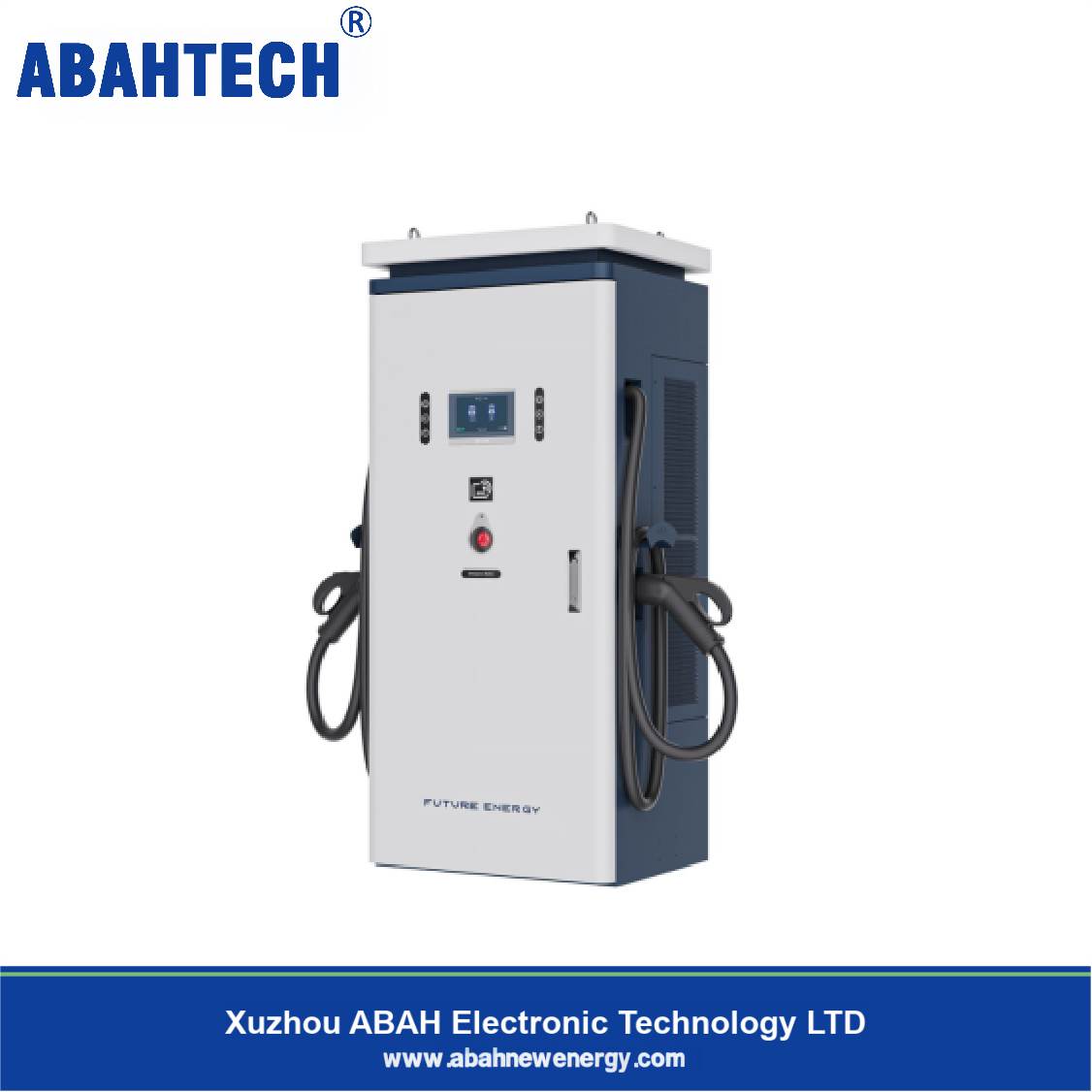

Standard DC Charging Station Series: Floor-Mounted Dual Gun DC

Portable on-board charger, can be directlycharged by connecting to a household 16Asocket.
The power of the device in standby mode isas low as 3W, which is energy-saving and lowconsumption.
Four color indicator lights, real-time controlof charging status

Description
Inquiry

Parameter		Details
Model		EDCL040B	EDCL080B	EDCL0160B	EDCL0240B	EDCL0360B
Input information	Power supply	3P+N+PE
	Voltage range	400VAC±20%
	Frequency	50/60HZ
Output information	Output voltage	200-1000V DC
	Maximum current	100A	250A	250A	250A	250A
	Rated power	40KW	80KW	160KW	240KW	360KW
User interface	Charging connector	CCS 2 CABLE
	LED indicator light	Green/Yellow/Red
	Liquid crystal display	7-inch color touch screen
	RFID reader	MIFARE ISO/IEC 14443 A
	Startup mode	Plug and play/RFID card/application
	Emergency stop	yes
	Interface language	English/Chinese
	Auriliary power suapply	12VDC
Communication	WIFI	optional
	Ethernet	yes
	3G/4G	yes
	OCPP	OCPP 1.6 Json (OCPP 2.0 optional)
Electrical parameters	Efficiency	≥95%
	Power factor	≥0.99 at 50% to 100% load
	THD	≤5% at 50% to 100% load
	Ripple coefficient	≤±0.5%
Runtime environment	RCD	CLASS A
	Entrance protection	IP54
	Impact protection	IK08
	Certification	CE
	Certificate Compliance	EN/IEC 61851-1:2017,EN/IEC 61851-23:2014
	Special protection	Overcurrent protection,residual current protection,short circuit protection,grounding protection,surge protection,overvoltage/undervoltage protection, over frequency/under freqyency protection, over temperature/under temperature protection
	Guarantee	2 years
	Install	Floor bracket
	Cooling method	fan cooling
	Noise	≤60DB
	Operating Temperature	-30℃~+55℃
	Operating Humidity	5%~95%
	Working altitude	<2000M
	Limensions & Weight	7004001600MM(LWH)(200KG)	7004001600MM(LWH)(250KG)	7004001600MM(LWH)(300KG)	7004001600MM(LWH)(340KG)	7004001600MM(LWH)(440KG)
