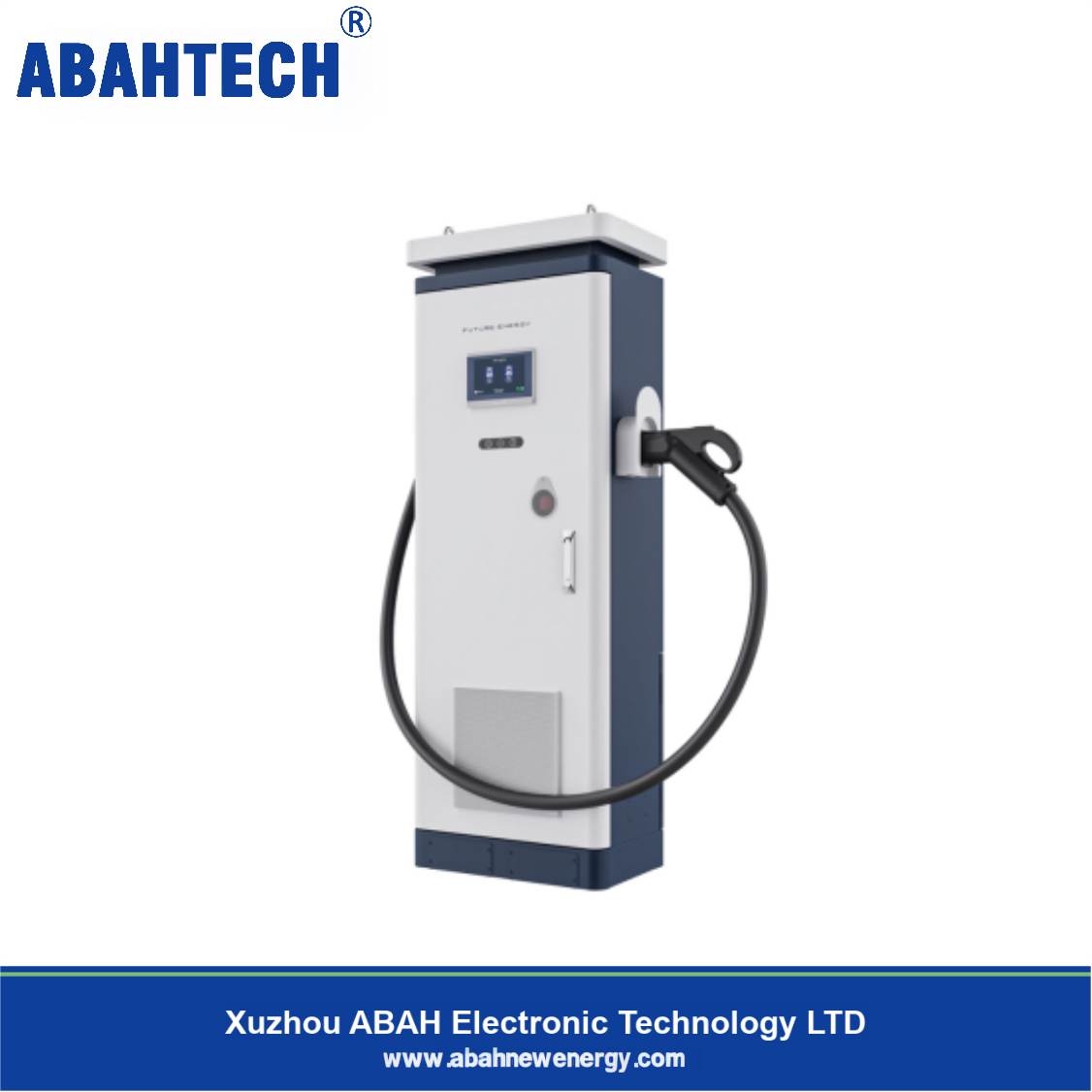

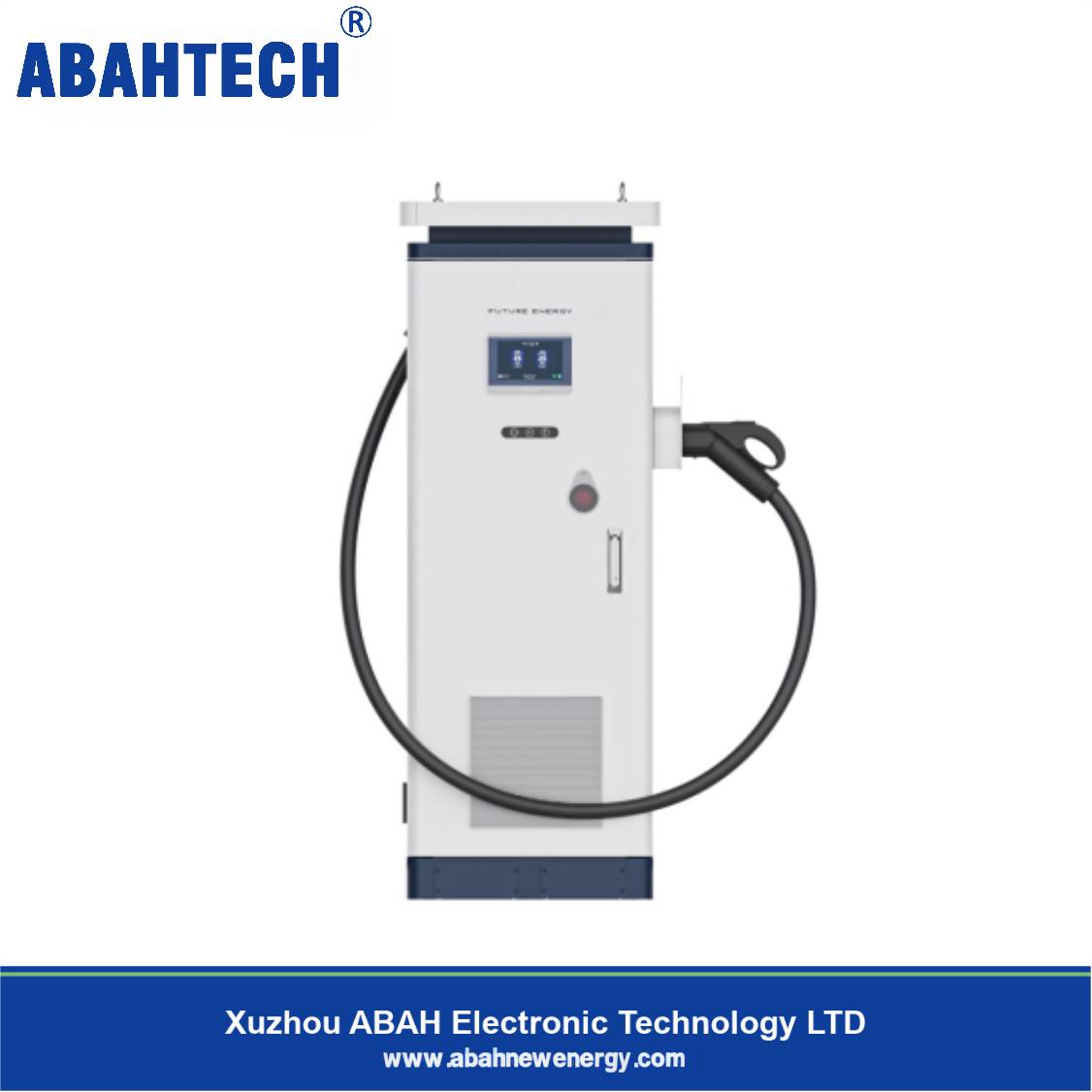

Single Gun Charging Terminal WY

The configuration of this single gun charging terminal is flexible and can be
applied to various scenarios. Optional touch screen. Suitable for supporting automobile
enterprises, commercial real estate, government enterprises, gas stations, public fast
charging stations, etc. It can charge various types and capacities of electric vehicles,
including passenger cars, buses, sanitation vehicles, heavy-duty trucks, etc.

Description
Inquiry

Category	Specifications	Air cooled data parameters	Liquid codled data parameters
Appearance structure	Dimensions(l x d x h)	500mm x 300mm × 1650mm	700mm x 400mm × 1700mm
	Weight	92kg	122kg
	Length of charging cable	5m
	Connectors	Ccs2 \|\| gbt*single
	Output voltage	200 - 1000vdc
	Output current	0 to 1200a
	Insulation (input - output)	>2.5kv
	Effciency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	Ocpp 1.6j
Functional design	Display	Customize according to requirements
	Rfid system	Iso/iec 14443a/b
	Access control	Rfid: Iso/iec 14443a/b \|\| credit card reader (optional)
	Communication	Ethernet - standard \|\| 3g/4g modem (optional)
	Power electronics cooling	Air cooled	Liquid codled
Work environment	Operating temperature	-30°c to 55°c
	Working\|\|storage humidity	≤ 95% rh \|\| ≤ 99% rh (non-condensing)
	Altitude	<2000m
	Ingress protection	Ip55 \|\| ik10	Ip54 \|\| ik10
Safety design	Safety standard	Gb/t 18487 2023, gb/t 20234 2023, gb/t 27930
	Safety protection	Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency stop	Emergency stop button disables output power
