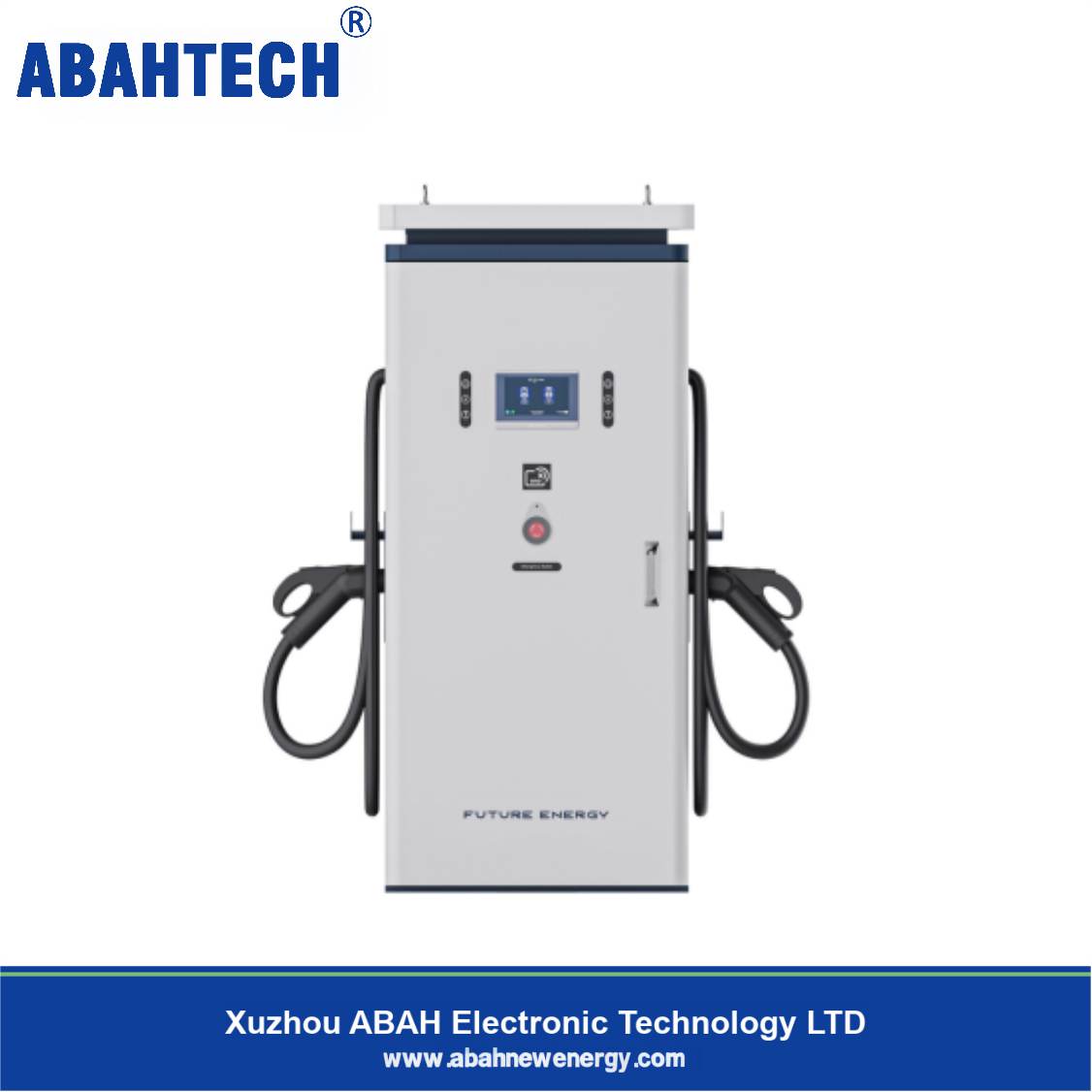

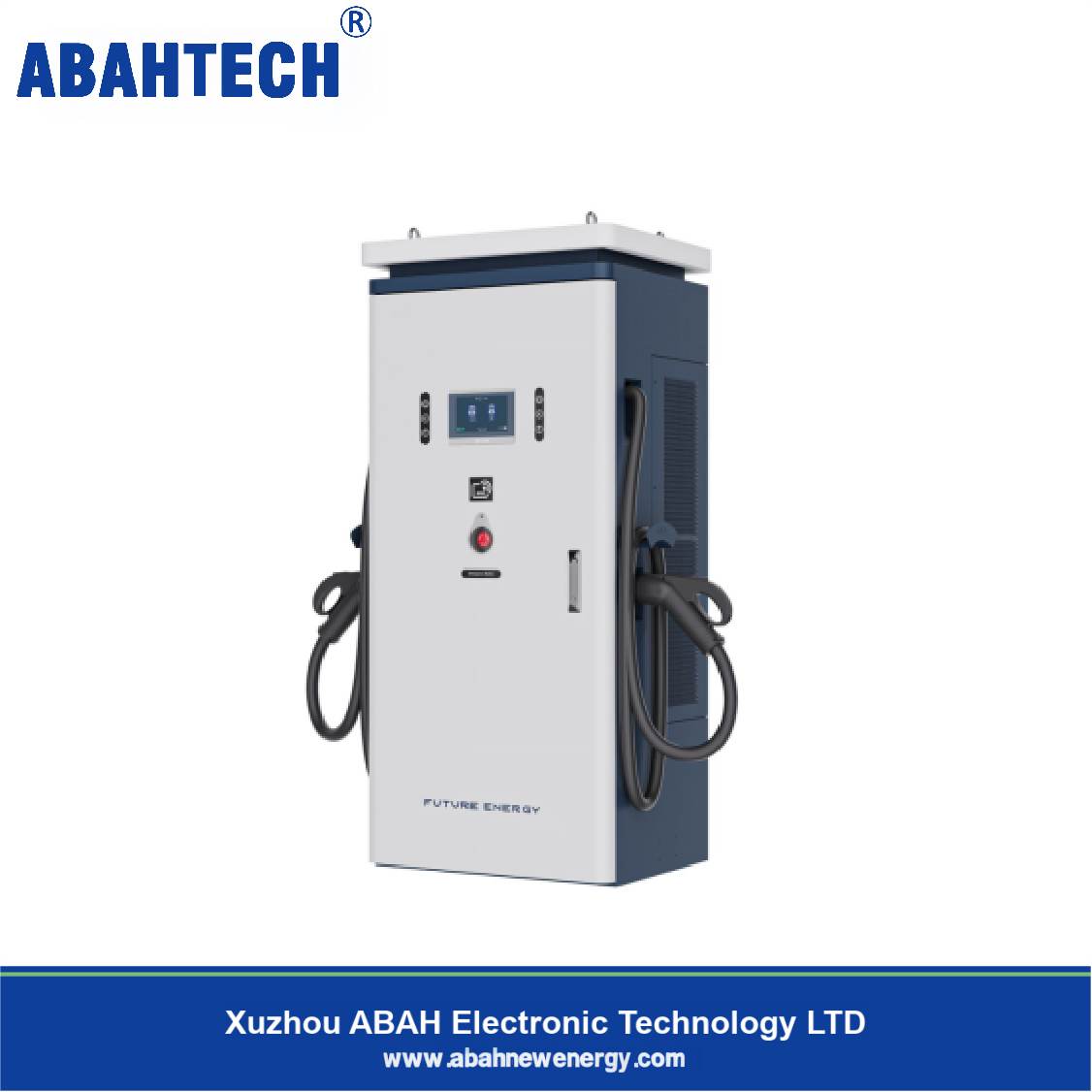

40-240KW Series DC EV Charger WY

This product is a self-developed brand new appearance that maximizes the satisfaction of customers' customized appearance needs. Standard configuration includes 8 20kw modules; Can be expanded to 240KW and supports customization.

Description
Inquiry

Category	Specifications	Data parameters
Appearance structure	Dimensions(L x D x H)	700mm x 700mm x 1900mm
	Weight	400kg
	Length of charging cable	5m
	Connectors	CCS1 \|\| CCS2 \|\| CHAdeMO \|\| GBT \|\| NACS
Electrical indicators	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC (The constant power : 300 - 1000vDC)
	Output current (Air Cooled)	CCS1- 200A \|\| CCS2 - 200A \|\| CHAdeMO - 150A \|\| GBT- 250A \|\| NACS- 200A
	Output current (iquid cooled)	CCS2 - 500A \|\| GBT- 8000A \|\| GBT- 600A \|\| GBT- 400A
	rated power	40-240kW
	Effciency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	7" LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet - Standard \|\| 3G/4G \|\| Wifi
	Power Electronics Cooling	Air Cooled \|\| liquid codled
Work environment	Operating temperature	-30°C to 55°C
	Working\|\|Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	<2000m
	Ingress Protection	IP54 \|\| IK10
Safety design	Safety standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
	Safety protection	Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power
