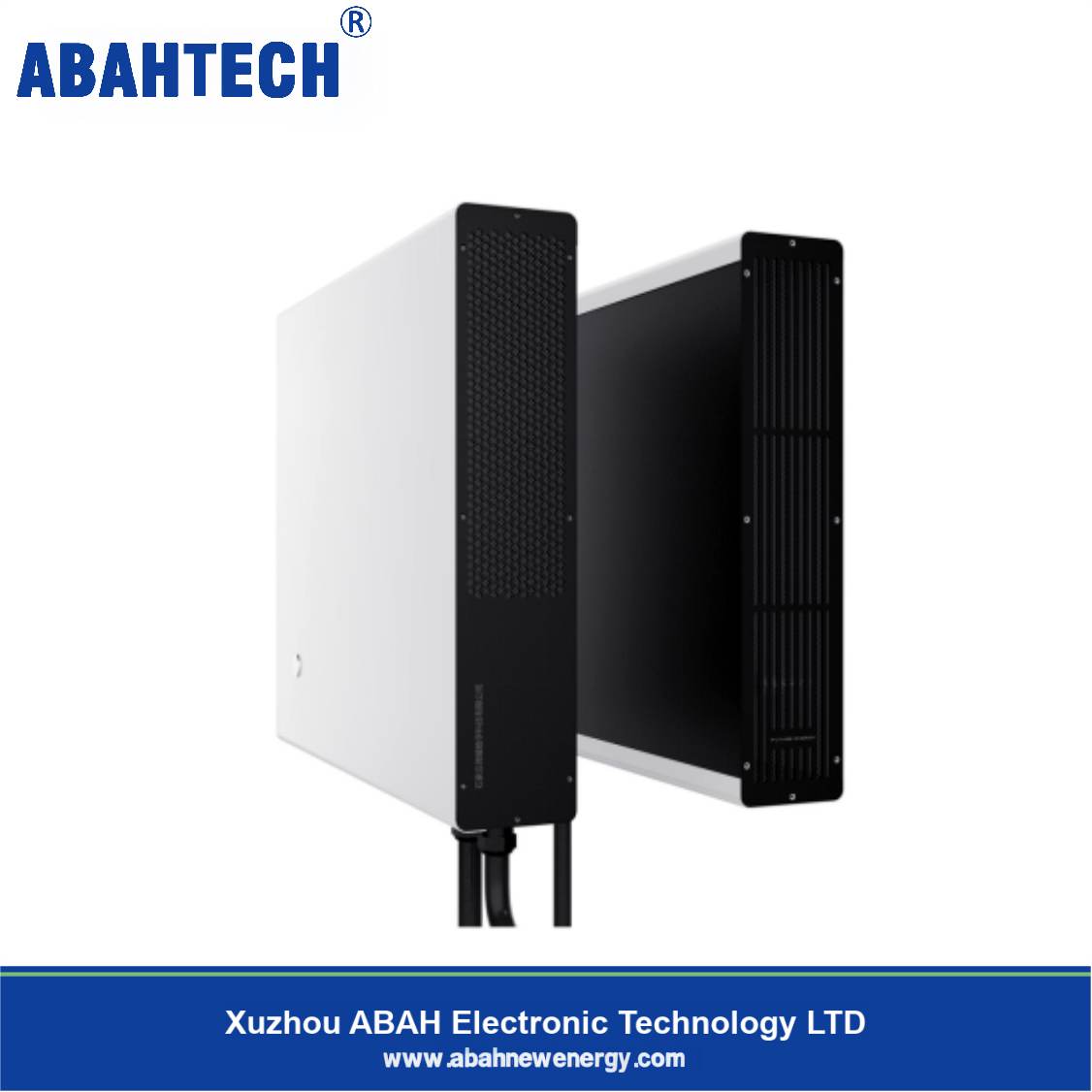

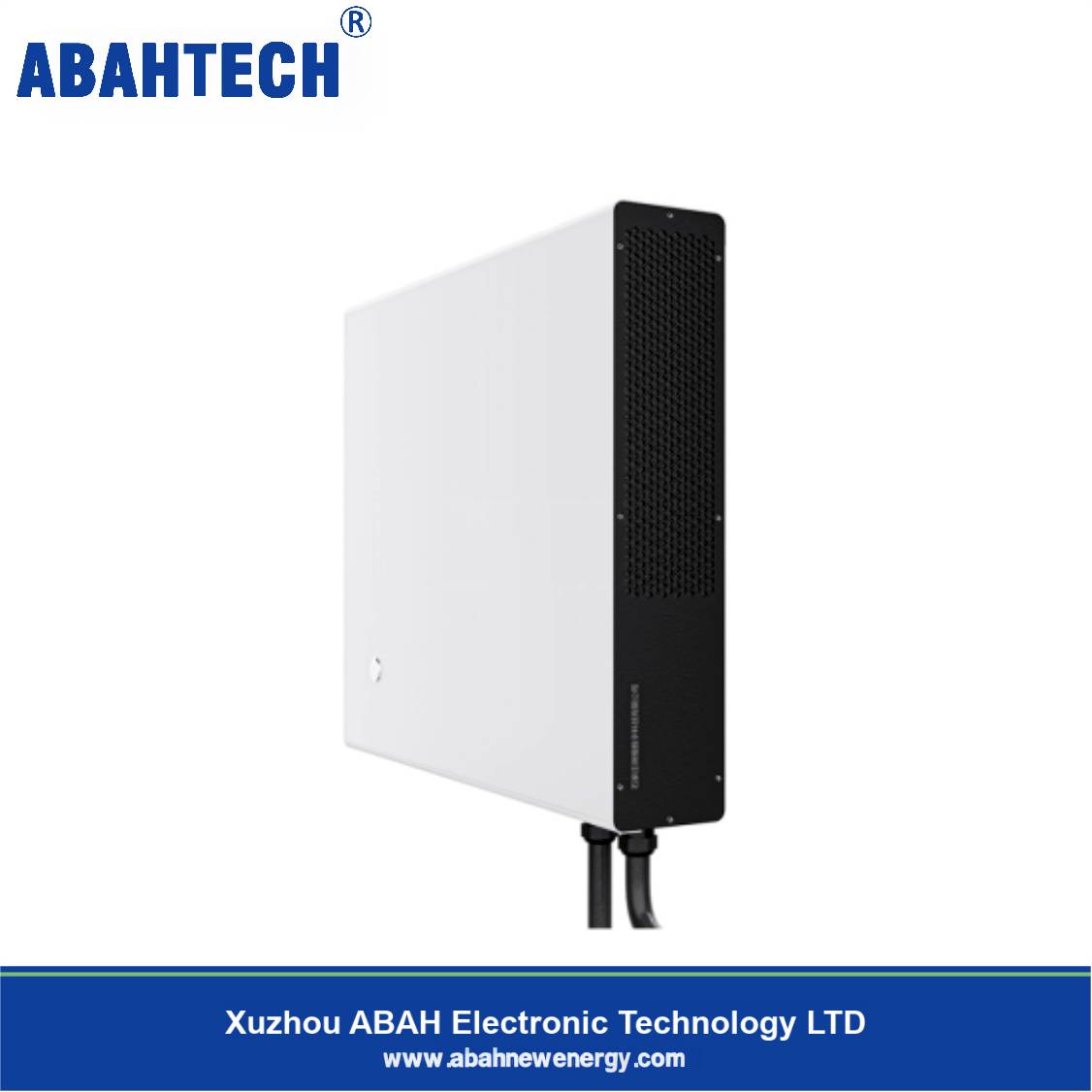

20-30kW Series DC EV Charger WY

This is a small wall mounted DC charger, simple and elegant, without any complicated details. The operation is very simple and suitable for use by all groups of people.20kw and 30kw are optional for the module.

Description
Inquiry

Category	Specifications	Data parameters
Appearance structure	Dimensions(l x d x h)	600mm x 470mm x 100mm (shell size) 740mm x 665mm x 230mm (packing size)
	Weight	40kg
	Length of charging cable	3.5m
	Connectors	Ccs1 \|\| ccs2 \|\| chademo \|\| gbt single gun
Electrical indicators	Input voltage	400vac / 480vac (3p+n+pe)
	Input frequency	50/60hz
	Output voltage	200 - 750vdc
	Output current	80a
	Rated power	20 - 30kw
	Effciency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	Ocpp 1.6j
Functional design	Display	No
	Rfid system	Iso/iec 14443a/b
	Access control	Rfid: Iso/iec 14443a/b \|\| credit card reader (optional)
	Communication	Ethernet - standard \|\| 3g/4g modem (0ptional)
	Power electronics cooling	Air cooled
Work environment	Operating temperature	-30°c to 75°c
	Working\|\|storage humidity	≤ 95% rh \|\| ≤ 99% rh (non-condensing)
	Altitude	<2000m
	Ingress protection	Ip30
Safety design	Safety standard	Gb/t,ccs2,ccs1,chademo,nacs
	Safety protection	Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
