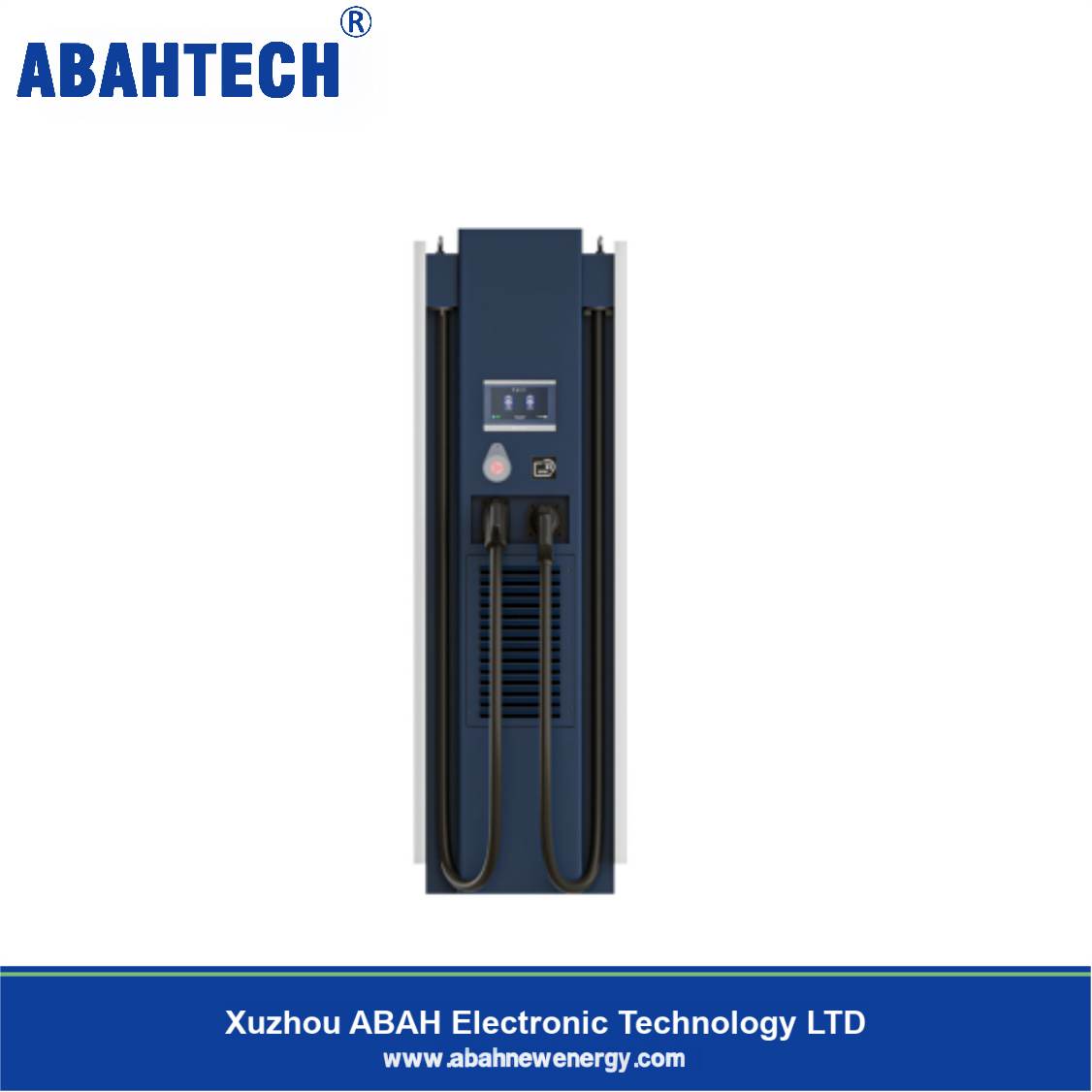

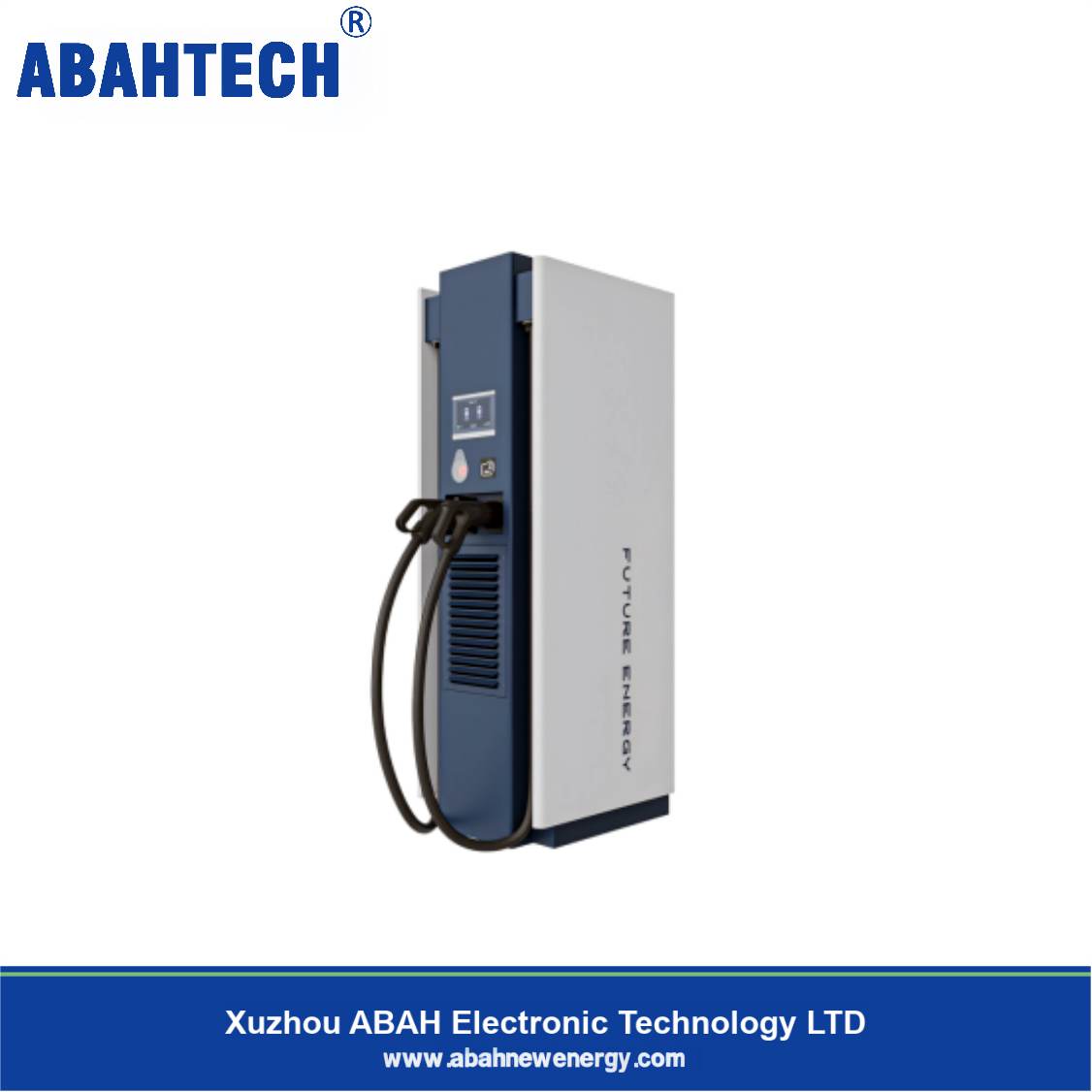

60-80KW Series DC EV Charger WY

The cabinet meets the customized requirements of State Grid Corporation of China.
The main body adopts a color blocking design, with a more simple and youthful style.
Standard 60kW, can be expanded to 80kW.

Description
Inquiry

Category	Specifications	Data parameters
Appearance structure	Dimensions(l x d x h)	600mm x 700mm × 1870mm
	Weight	300kg
	Length of charging cable	5m
	Connectors	Ccs1 \|\| ccs2 \|\| chademo \|\| gbt \|\| nacs
Electrical indicators	Input voltage	400vac / 480vac (3p+n+pe)
	Input frequency	50/60hz
	Output voltage	200 - 1000vdc (the constant power : 300 - 1000vdc)
	Output current (air cooled)	Ccs1- 200a \|\| ccs2 - 200a \|\| chademo - 150a \|\| gbt- 250a \|\| nacs- 200a
	Output current (iquid cooled)	Ccs2 - 500a \|\| gbt- 8000a \|\| gbt- 600a \|\| gbt- 400a
	Rated power	60-80kw
	Effciency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	Ocpp 1.6j
Functional design	Display	7" Lcd with touch screen
	Rfid system	Iso/iec 14443a/b
	Access control	Rfid: Iso/iec 14443a/b \|\| credit card reader (optional)
	Communication	Ethernet - standard \|\| 3g/4g \|\| wifi
	Power electronics cooling	Air cooled \|\| liquid codled
Work environment	Operating temperature	-30°c to 55°c
	Working\|\|storage humidity	≤ 95% rh \|\| ≤ 99% rh (non-condensing)
	Altitude	<2000m
	Ingress protection	Ip54 \|\| ik10
Safety design	Safety standard	Gb/t,ccs2,ccs1,chademo,nacs
	Safety protection	Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc
	Emergency stop	Emergency stop button disables output power
